BNT 3580

Digital Printing Films

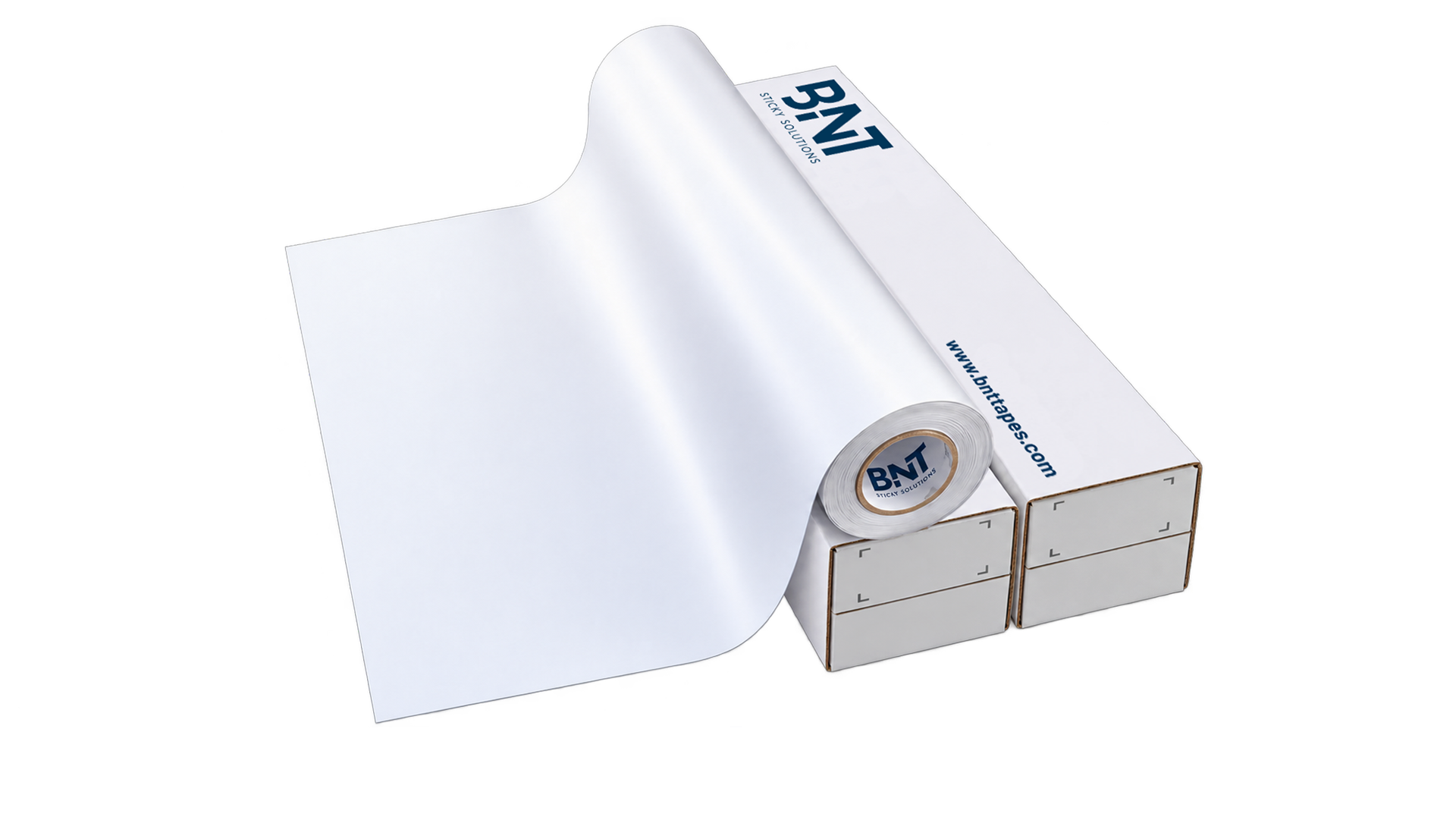

Cadmium-free monomeric self-adhesive PVC film series designed for digital printing. Suitable for short and medium term applications on glass surfaces, signs, guiding marks, showcases and exhibitions.

Application Fields

Release Liner: highly stable 138 g/sqm silicone coated kraft paper.
Adhesive: acrylic permanent clear or grey adhesive.
Printing: Solvent, ECO Solvent, UV and Latex technologies.

Features

Wide temperature resistance
Long shelf and service life
High adhesive power
Thin and flexible structure

Downloads

You can download product files.

Technical Data Sheet

Storage

To ensure optimal performance, the product should be stored in its original packaging under controlled conditions at a temperature of 23°C and a relative humidity of 50%. Under these recommended conditions, the shelf life is 2 years.

Measurements

1000mm x 150m to 3000m
1600mm x 150m to 3000m

Variety of measurements are possible upon request

Properties	Test Method	Value
Film Thickness	ISO 4591:1992	0,080 mm (80 micron)
Adhesive power	FINAT TM 1 (Stainless Steel)	24 Hours > 16 N / 25 MM
Tensile Strength	ISO 527-1:2012	Along > 16 MPA Across > 18 MPA
Elongation Strength	ISO 527-1:2012	Along > % 160 Across > % 170
Dimensional Stability (150×150 mm / 48 hours / 70)	FINAT 14 / Steel	< 0,4 mm
Temperature Resistance		-30°C ile + 90°C
Application Temperature		>+10°C
Shelf Life		2 years (With original package at 23 C and 50% relative humidity)
Service Life		Outdoor: 3 Years, Indoor: Unlimited

Disclaimer

Technical data is subject to modification and does not exempt the customer/user from carrying out its own tests, especially regarding application conditions, adhesive interactions, production and ageing.
